ELECTRIC CITY BIKE

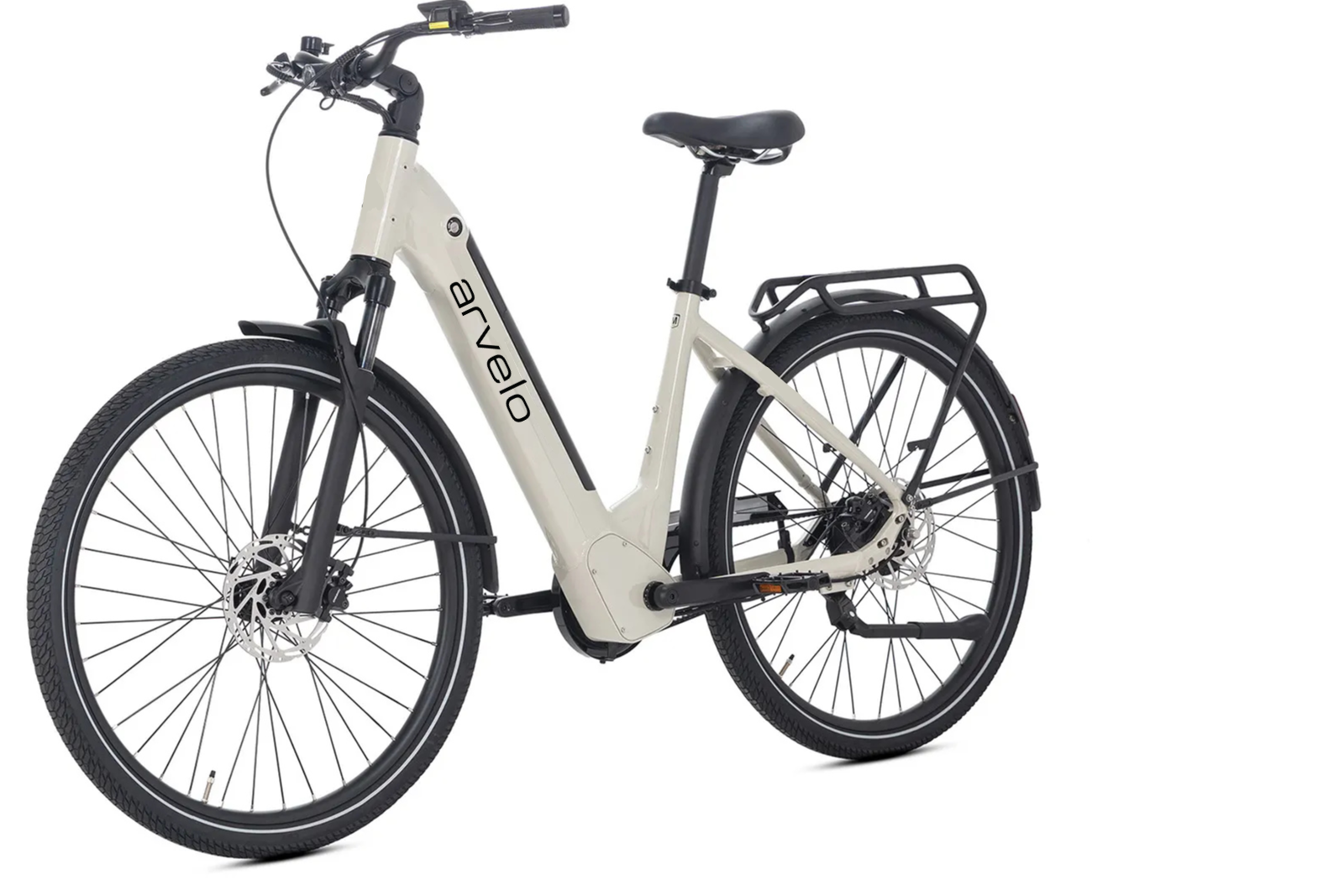

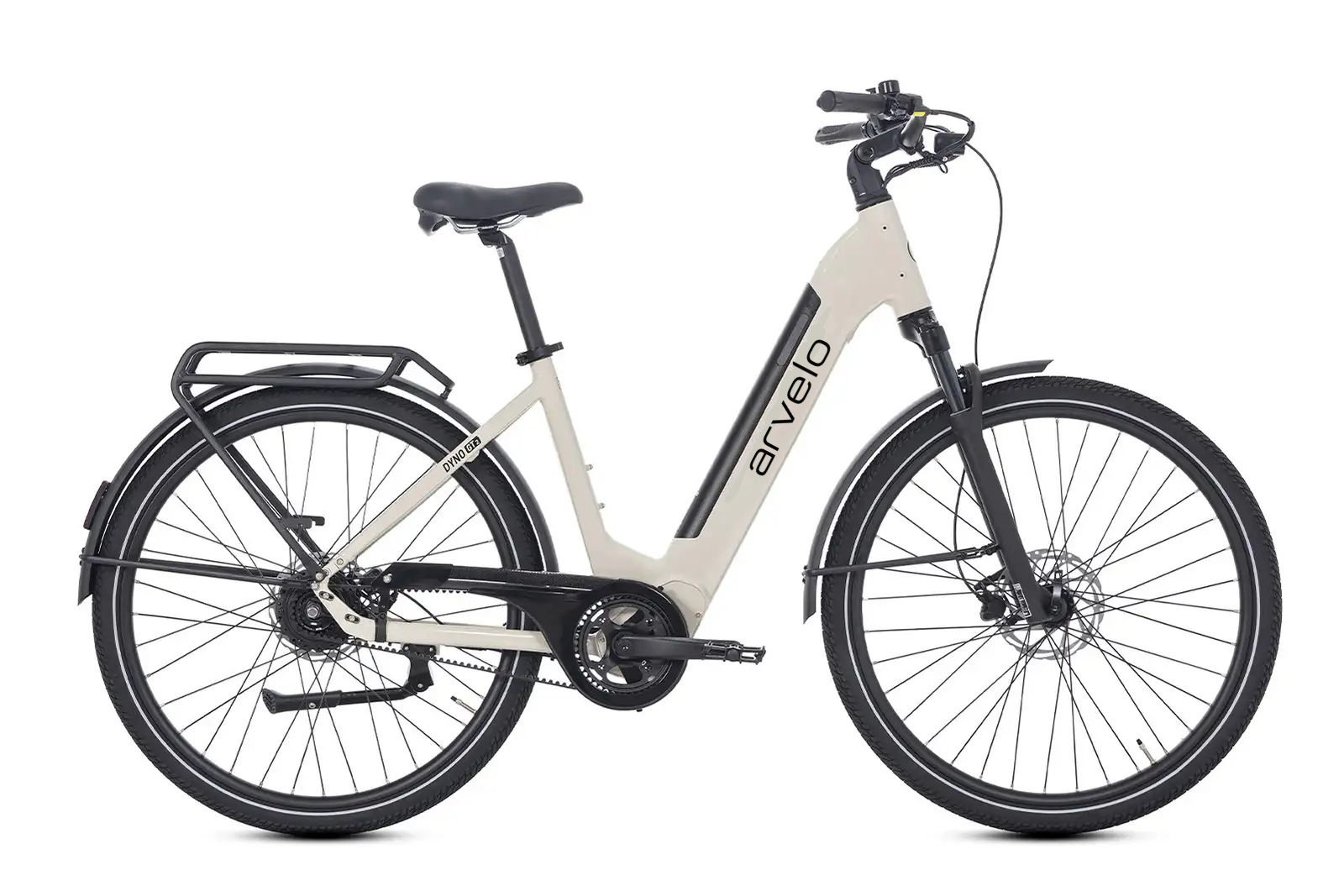

Arvelo Commute

Carbon Belt City E-Bike

€1.999,00

Smooth, quiet and built for everyday city riding. The Arvelo Commute combines a 250W Bafang rear motor, responsive torque sensor, automatic 3-speed gearing and a low-maintenance carbon belt drive.

Motor 250W · 50 Nm

Battery Samsung 540Wh

Range Up to 150 km*

Drive Carbon Belt

Free Shipping On Arvelo e-bikes

2-Year Warranty 5 years on the frame

14-Day Returns Subject to our return policy

MOTOR 250W Bafang Rear motor

TORQUE 50 Nm Maximum torque

BATTERY 540Wh Samsung · 36V 15Ah

RANGE Up to 150 km* Assistance level 1

SENSOR Torque Sensor Adaptive assistance

DRIVE Carbon Belt Quiet & low-maintenance

BUILT FOR EVERYDAY LIFE

City riding,
simplified.

Automatic shifting, responsive electric assistance and a clean carbon belt drivetrain make the Arvelo Commute intuitive from the first pedal stroke.

CARBON BELT DRIVE

Quiet. Clean.
Low-maintenance.

The carbon belt drivetrain delivers smooth and quiet power transfer without the oil and frequent maintenance associated with a conventional bicycle chain.

No chain oil Quiet operation Low maintenance

AUTOMATIC 3-SPEED

Let the bike handle the shifting.

The automatic 3-speed internal gear system adapts to your riding pace, making starts, stops and everyday urban traffic smoother and easier.

TORQUE SENSOR

Assistance that responds to you.

The torque sensor measures your pedalling effort and adjusts motor support accordingly for a smoother and more natural riding experience.

SAMSUNG BATTERY

Go further.
Charge faster.

A removable Samsung 36V 15Ah battery provides 540Wh of capacity and is paired with a 5A fast charger for shorter charging times.

540Wh Battery capacity

5A Fast charger

RANGE

Built to keep moving.

150 km Up to in assistance level 1*

70 km Measured in assistance level 5*

*Manufacturer test figures measured on a full charge on flat roads with an approximately 80 kg rider. Actual range varies depending on assistance level, terrain, temperature, tyre pressure, rider weight, cargo, wind and riding style.

EVERYDAY PRACTICALITY

Designed around daily use.

Tektro Hydraulic Brakes

Hydraulic disc brakes provide strong, progressive braking with motor cut-off for confident control.

MIK HD Rear Rack

The integrated MIK HD rear rack supports up to 27 kg and works with compatible bags, baskets and accessories.

Hydraulic Suspension

A hydraulic lock-out suspension fork helps absorb uneven roads while allowing a firmer setup on smoother surfaces.

28 × 2.0" CST Tyres

Wide puncture-resistant tyres provide stability and comfort for everyday urban riding.

Advanced Lighting

A 40-lux front light and rear brake light improve visibility during daily rides.

Bluetooth LCD Display

View battery level, riding speed, mileage and key riding data directly from the handlebars.

ARVELO COMMUTE

Technical specifications.

Battery Samsung 36V 15Ah · 540Wh

Motor Bafang 36V 250W rear motor · max. 50 Nm

Display LCD display with Bluetooth

Pedal Assist 5 levels adaptive power assist

Sensor Torque sensor

Charger 36V 5A fast charger

Gearing Automatic 3-speed internal gear system

Drive Carbon belt

Range Up to 150 km*

Frame 6061 aluminium alloy

Brakes Tektro hydraulic disc brakes with power cut-off

Suspension Hydraulic lock-out suspension fork

Tyres CST 28 × 2.0"

Rear Rack MIK HD system · up to 27 kg

Maximum Load 120 kg

Bike Weight 28.5 kg

Front Light 40 Lux · IPX5

Rear Light Integrated brake light

FIND YOUR SIZE

Commute geometry.

Available in two frame sizes for a broad range of riders.

Measurement	Size M	Size L
Recommended rider height	160–185 cm	165–190 cm
Total length	1892 mm	1892 mm
Wheelbase	1162 mm	1162 mm
Reach	397 mm	397 mm
Standover height	478 mm	478 mm
Saddle height	850–1010 mm	890–1050 mm
Handlebar height	1080–1130 mm	1080–1130 mm
Head tube	180 mm	180 mm
Seat tube	490 mm	530 mm
