HYDRAULIC DISC BRAKES
Confident braking control.
GEMMA hydraulic disc brakes provide strong and progressive braking performance for greater control during everyday use.
ELECTRIC TRICYCLE
Arvelo Assist
Stable, comfortable mobility for everyday life
€2.899,00

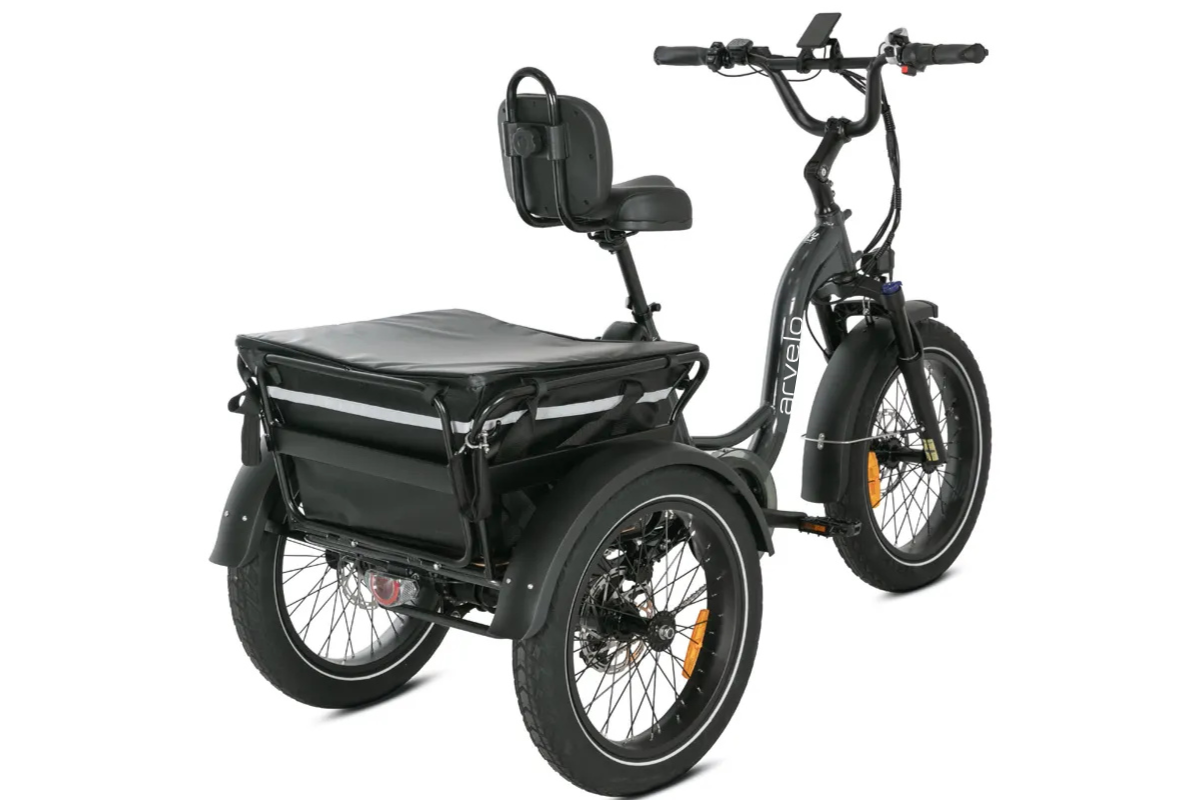

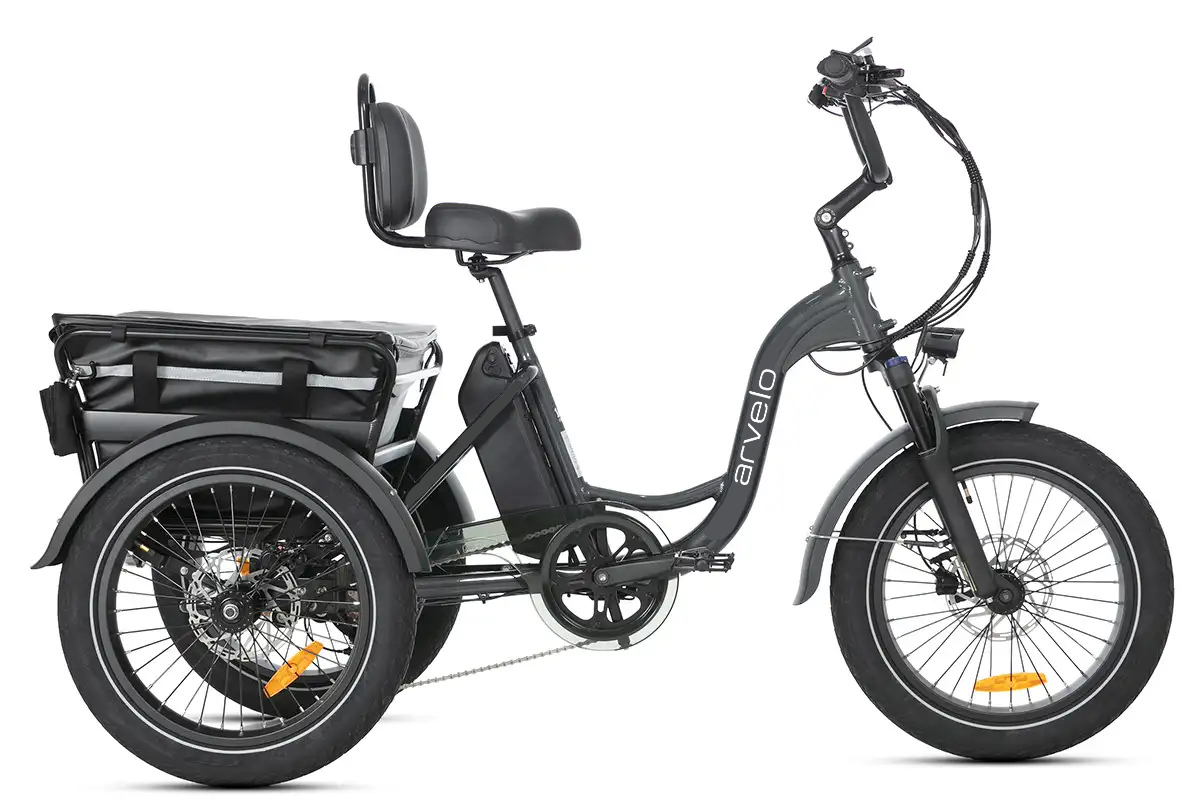

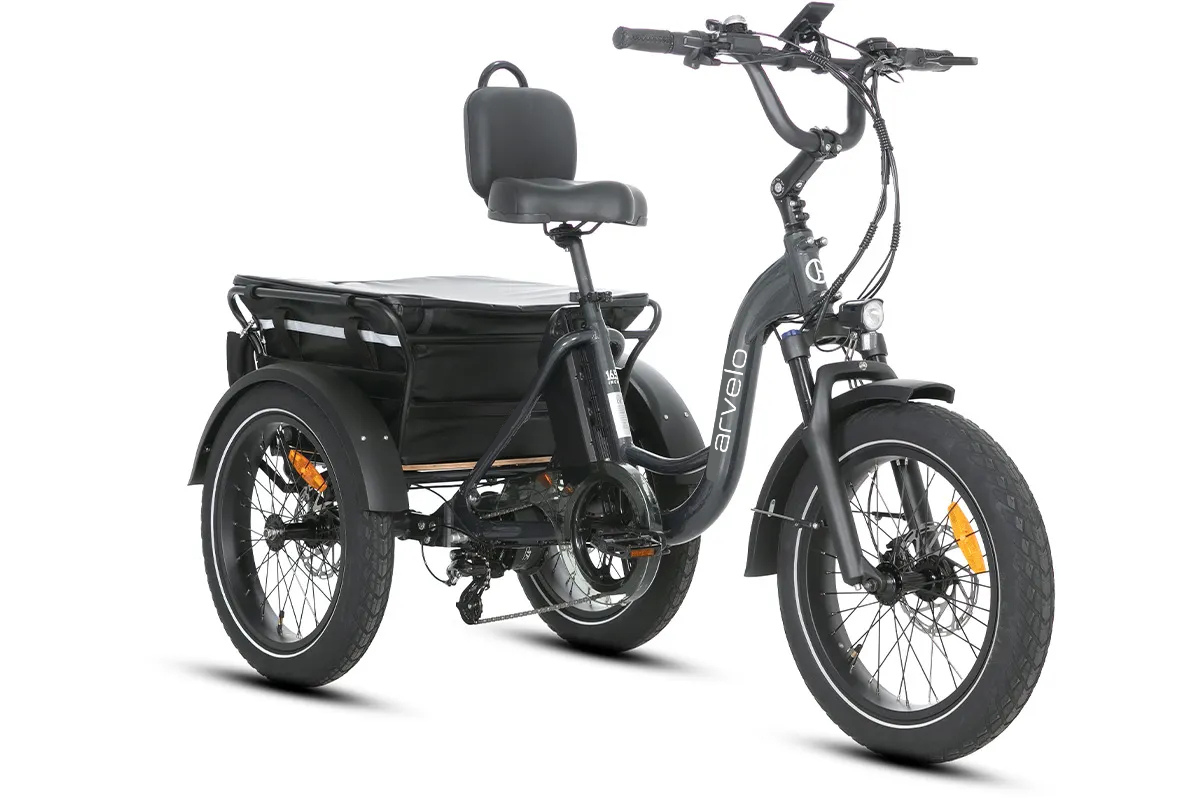

The Arvelo Assist is a comfortable electric tricycle designed for everyday mobility, shopping and carrying daily essentials. Its stable three-wheel platform combines a 250W rear motor with up to 85 Nm, a 720Wh LG battery, hydraulic disc brakes and a rear differential for smoother cornering.
Motor
250W · 85 Nm
Battery
LG 720Wh
Range
Up to 150 km*
Max Load
150 kg
Free Shipping
On Arvelo e-bikes
2-Year Warranty
5 years on the frame
14-Day Returns
Subject to our return policy
STABILITY FOR EVERYDAY MOBILITY
Three wheels.
Three wheels.
A more stable ride.
The three-wheel design provides additional stability compared with a conventional bicycle, particularly at low speeds and while stationary. Combined with electric assistance, the Arvelo Assist is designed to make everyday mobility more accessible and comfortable.
01
REAR DIFFERENTIAL
Smoother, more natural turns.
The rear differential allows the left and right rear wheels to rotate at different speeds while turning. This helps create smoother cornering and more predictable handling.
Smoother cornering
Three-wheel stability
Improved handling
PARKING SYSTEM
Park with confidence.
The parking system helps keep the Assist stationary while parking, loading groceries or getting on and off the tricycle.
COMFORT MEETS STABILITY
Designed for relaxed everyday riding.
The Assist combines a wide cushioned saddle with backrest, a 120 mm hydraulic suspension fork and wide 20 × 3.0-inch tyres to make everyday journeys more comfortable.
01
Cushioned saddle with backrest
02
120 mm suspension fork
03
20 × 3.0" CST tyres
04
Low 440 mm standover height
LG BATTERY
720Wh for everyday independence.
The removable LG 48V 15Ah battery provides 720Wh of capacity. Its integrated battery management system helps protect against conditions such as overcharging and overheating.
150 km
Up to in assist level 1*
70 km
Up to in assist level 5*
*Manufacturer range figures. Actual range depends on rider weight, cargo, terrain, temperature, tyre pressure, assistance level, wind and riding style.
PRACTICAL CARGO SPACE
Carry more with less effort.
The rear basket provides generous everyday storage and can be opened to make loading larger or heavier items easier. It is ideal for groceries, bags and daily essentials.
460 mm
Basket width
360 mm
Basket depth
270 mm
Basket height
BUILT FOR DAILY USE
Practical from front to back.
250W Rear Motor
Provides electric assistance up to 25 km/h with up to 85 Nm of torque.
Speed Sensor
Five levels of pedal assistance allow you to select the desired level of electric support.
Shimano 7-Speed
Seven mechanical gears provide additional flexibility for different terrain and riding situations.
Multifunction Rear Light
The rear lighting system includes brake-light and turn-signal functionality for improved visibility.
LCD Display + USB
View key riding information from the handlebars and use the integrated USB port when needed.
150 kg Load Capacity
Designed to accommodate the rider together with everyday cargo within the specified maximum load.
ARVELO ASSIST
Technical specifications.
Motor
250W rear motor · up to 85 Nm
Top Speed
25 km/h pedal assistance
Battery
LG 48V 15Ah · 720Wh
Range
Up to 150 km*
Charger
48V · 2A
Sensor
Speed sensor
Pedal Assist
5 assistance levels
Display
LCD display with USB port
Gearing
Shimano 7-speed
Frame
6061 aluminium
Brakes
GEMMA hydraulic disc brakes
Suspension
Hydraulic fork · 120 mm travel
Tyres
CST 20 × 3.0"
Saddle
Cushioned saddle with backrest
Chain
KMC
Maximum Load
150 kg
Bike Weight
42 kg
Recommended Height
From 155 cm
DIMENSIONS
Assist geometry.
| Measurement | Arvelo Assist |
|---|---|
| Recommended rider height | From 155 cm |
| Total length | 1820 mm |
| Wheelbase | 1230 mm |
| Handlebar height | 1100–1200 mm |
| Seat height | 920–1020 mm |
| Standover height | 440 mm |
| Wheel size | 20 × 3.0" |
| Rear basket | 460 × 360 × 270 mm |
